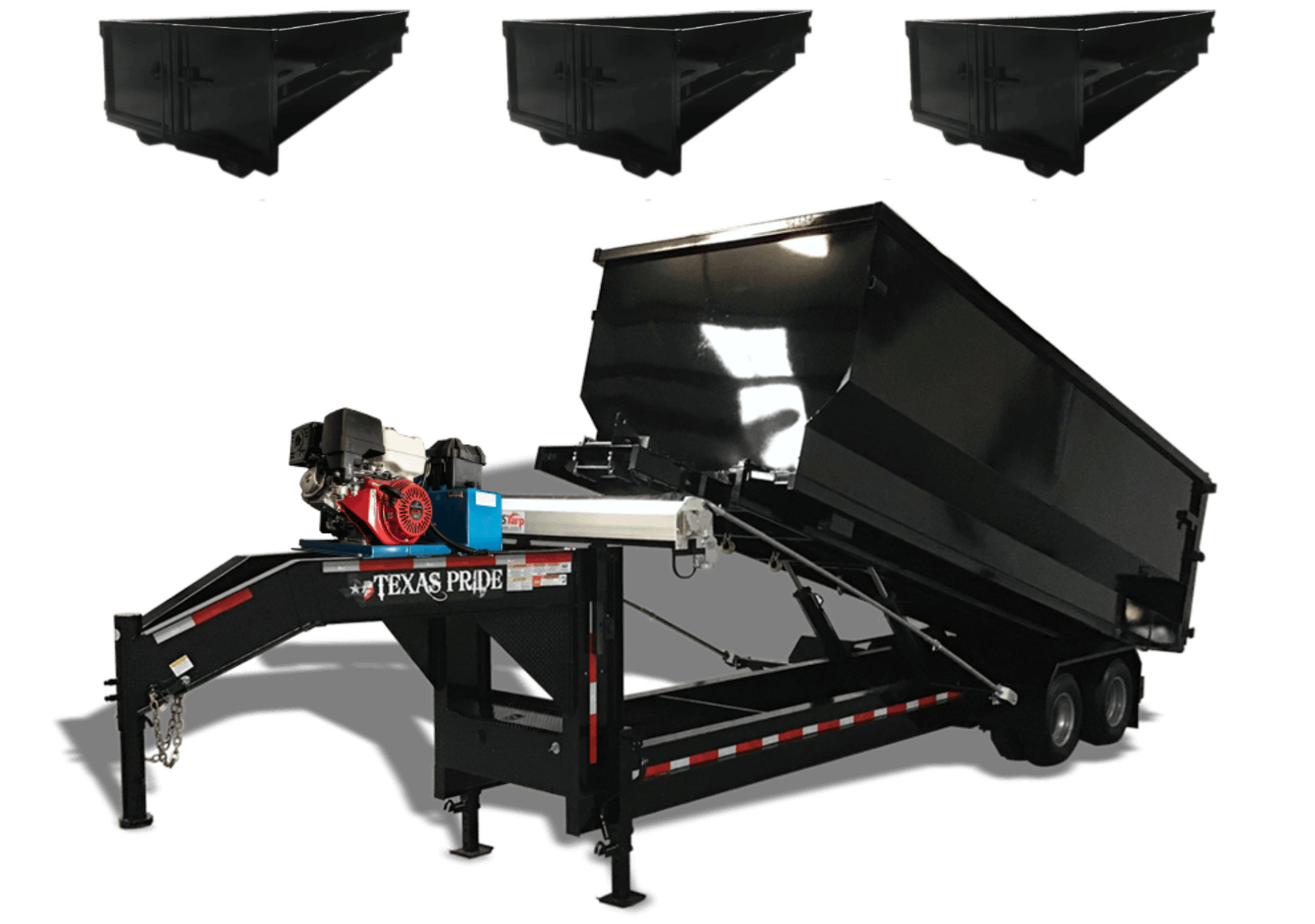

26k lb GVWR Gooseneck Reeving Roll Off Trailer
Full Walk Around Video
LEARN 7 THINGS ABOUT THIS TRAILER


Honda GX 390 Gasoline Power Unit
Hydraulic Reeving System
Manual Tarp System
Tandem 12,000 lb 8 lug axles
Madisonville, Texas Pickup Pricing
PERRIS, CALIFORNIA PICKUP PRICING
Edit Display Pricing
Edit Display Pricing
Specifications
G.V.W.R.: | 26,000 lbs |
Empty Trailer Weight: | 5,500 lbs (16 foot bumper pull, no additional options) |
Net Payload Capacity: | 20,500 lbs (16 foot bumper pull trailer without dumpster) |
Axles: | Tandem 12,000 lb 8 lug axles (all wheel electric brakes) |
Suspension: |
Heavy duty slipper spring
![]() |
Brakes: |
All wheel electric brakes on all axles (12 inch x 5 inch brake shoe)
![]() |
Tires: |
New 16 inch ST235/80R16 10ply radial LRE (3,520lbs ea)
![]() |
Wheels: |
16x6x8 inch hole white or silver mod (based on stock)
![]() |
Main Frame: | 8 inch I-beam steel with 8 inch channel doubler |
Tongue: |
12 inch I-beam steel
![]() |
Tilt Frame: | 2x6 inch rectangular steel tubing (1/4 inch wall) |
Cross members: |
2x6x1/4 inch wall tubing
![]() |
Battery: | Group 27 deep cycle marine (FOR TARP SYSTEM) |
Charging system: |
Onboard 110v tester and charger (Also set up to charge while being towed)
![]() |
Pump: |
Honda GX 390 Gasoline Power Unit (6GPM)
![]() |
Toolbox: |
Locking tool box houses battery and charger
![]() |
Controller: | Dual 15 foot corded remote control (Also comes with 4 function wireless to operate the lift and the reeving cable) |
Lift Hydraulics: |
Dual 4 inch bore cylinders (30k max rated lift) reeving hydraulics dual 3.5 inch bore cylinders
![]() |
Coupler: | 4 hole adjustable height 2 5/16 inch gooseneck or bumper pull pintle ring |
Jack: |
12,000 lb drop leg jack (dual jacks on gooseneck)
![]() |
Fenders: |
Heavy duty 14 gauge tread plate (reinforced)
![]() |
Safety Chains: |
Two heavy duty safety chains
![]() |
Lighting: |
All lifetime flush mount or recessed LED (stop, turn, clearance lights)
![]() |
Wiring: |
U.S. made sealed wiring harness
![]() |
Safety Equipment: |
All DOT required safety chains, emergency break-a-way switch and conspicuity tape.
![]() |
Finish: | Fully primed and painted with 2 coats of automotive grade acrylic enamel |
Dumpster Flooring: | 1/8 inch thick plate steel |
Dumpster Siding: | 1/8 inch thick plate steel |
Dumpster Wall Height: | 48 inch, 60 inch or 72 inch |
Dumpster Doors: | Double swing rear doors (opens like barn doors) |
Dumpster Widths: | 72 inch at bottom tapering to 92 inch at the top (makes dumpsters stackable for easier shipping) |
More Options
Spare 16 inch 10ply tire | $250 |
