14k lb GVWR Bumper Pull Dump Trailer
| 7'x12' Dump Trailer with 24" sides | $8,295 |
| 7'x14' Dump Trailer with 24" sides | $8,695 |
| 7'x16' Dump Trailer with 24" sides | $9,295 |
| 7'x12' Dump Trailer with 24" sides | $9,795 |
| 7'x14' Dump Trailer with 24" sides | $10,195 |
| 7'x16' Dump Trailer with 24" sides | $10,795 |
Full Walk Around Video
LEARN 7 THINGS ABOUT THIS TRAILER
Dual 7k lb Direct Lube Axles
12', 14' or 16' Bed Length
Multi Stage Trunnion Mount Telescopic Cylinder
24" Side Wall Height
Specifications
| G.V.W.R.: | 14,000 lbs |
| Empty Trailer Weight: | 3,800lbs (14' trailer with no additional options) |
| Net Payload Capacity: | 10,200lbs (14' trailer with no additional options) |
| Axles: |
Dual 7,000 lb Direct Lube 8 lug (electric brakes on both axles)
|
| Suspension: |
Heavy Duty Slipper Spring Suspension
|
| Brakes: |
All wheel electric brakes on all axles (12" x 2" brake shoe)
|
| Tires: |
New 16" ST235/80R16 10ply radial LRE (3,520lbs ea)
|
| Wheels: |
16" x 6" eight hole white or silver (based on stock)
|
| Main Frame: |
6" x 2" x 3/16" wall rectangular tubing
|
| Tongue: |
6" channel
|
| Tilt Frame: |
3" x 2" x 3/16" wall rectangular tubing
|
| Cross Members: |
3" channel
|
| Bed Flooring: |
1/8" thick sheet steel
|
| Bed Siding: |
1/8" thick sheet steel
|
| Tie Downs: |
Stake pockets & D-Rings
|
| Deck width: |
82"
|
| Deck Length: |
12', 14' or 16'
|
| Deck Height: | Approximately 26" |
| Side Wall Height: |
24" standard
|
| Rear Doors: |
Double swing doors (open like barn doors)
|
| Battery: |
Group 24 deep cycle marine
|
| Charging System: |
Onboard 110v charger and tester (also charges off truck while being towed)
|
| Pump: |
Electric over hydraulic (1.7 gpm) - power up / gravity down
|
| Controller: |
15' corded remote control
|
| Toolbox: |
Front locking tool box - contains battery and pump
|
| Hydraulics: |
Multi stage trunnion mount telescopic cylinder
|
| Coupler: |
4 hole adjustable height 2 5/16" ball
|
| Safety Chains: |
Two heavy duty safety chains
|
| Jack: |

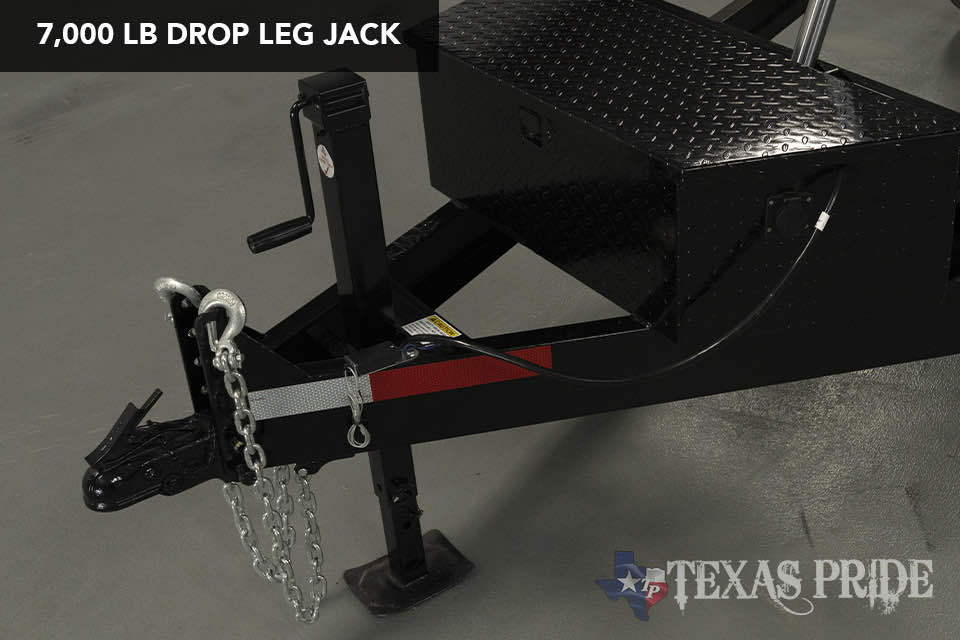

7,000 lb drop leg jack
|
| Fenders: |
14ga heavy duty tread plate
|
| Lighting: |
All flush mount or recessed lifetime LED stop / turn / clearance lighting
|
| Wiring: |
U.S. made sealed modular wiring harness
|
| Safety Equipment: |
DOT required emergency break-a-way kit and conspicuity tape & Prop Rod
|
| Finish: |
Fully primed and painted with automotive grade acrylic enamel
Finish: Fully primed and painted with automotive grade acrylic enamel
|
More Options
| 16″ 10ply mounted spare tire and rim |
$175
$175
|
| 16″ 14ply mounted spare tire and rim |
$225
$225
|
| 17.5″ 16ply mounted spare tire and wheel |
$300
$300
|
| Upgrade from 10ply to 14ply tires |
$50/ea ($200 total)
|
| Upgrade from 10ply to 16ply tires |
$125/ea ($500 total)
|
| 36″ sides add |
$500
|
| 48″ reinforced sides add | $1,000 |
| 60″ reinforced sides add | $1,500 |
| Pair of 5′ steel ramps for loading equipment |
$300
|
| Upgrade cross members (12″ on center) |
$400
|
| Barn door and spreader combo gate (up to 36″ tall) |
$400
Barn door and spreader combo gate (up to 36" tall):$300
|
| Barn door and spreader combo gate (48″ tall) |
$600
Barn door and spreader combo gate (48" tall only): $600
|
| 3/16″ upgraded flooring (50% thicker) |
$800
|
| Deluxe manual roll up tarping system |
$600
Deluxe manual roll up tarping system: $600
|
| Lodar ® long range two function wireless remote |
$400
|
| 7amp solar charging panel |
$300
|
| Red, blue, orange, or green paint |
$500
|
| Pintle ring along with 2 5/16″ ball coupler |
$100
|
| Dual Ram Hoist |
$1000
|
